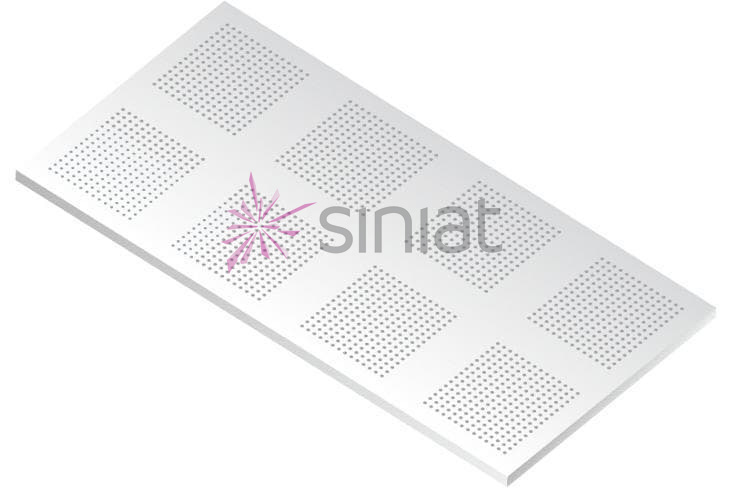

PREGYBELTM R 15 n° 8
Acoustic Absorption Class C & D
Perforation ratio : 11%
Board size: 240x120cm
Thickness : 12,5mm
Tapered edges
|
Frequency (Hz)
|
125 |
250 |
500 |
1000 |
2000 |
4000 |
Absorption coefficient |
|
αp (Mineral wool 50mm Plenum depth 30cm) |
0,70 |
0,75 |
0,65 |
0,65 |
0,50 |
0,50 |
αw = 0,60 L (1) |
|
αp (Mineral wool 80mm Plenum depth 10cm) |
0,71 |
1,03 |
0,83 |
0,54 |
0,43 |
0,39 |
αw = 0,50 LM (2) |
(1) Acoustic Test Report : AIRO L/3027/6
(2) Acoustic Test Report : CSTB 713.960.0084/5
- The absorption values, αp, are given per octave band.
- The absorption coefficient, αw, is based on the ISO 11654 standard which uses a rating curve which favours high frequencies. Consequently, the values are followed by an L or an M, to indicate that the PREGYBEL TM boards offer higher absorbency at low frequencies (L) or medium frequencies (M).
- The installations with mineral wool have insulation panels without a vapour barrier.
- Acoustic absorption of a non-perforated PREGYPLAC TM BA13 board:
- αw = 0,10 L (Mineral wool 80 mm plenum depth 60 cm).
PREGYBELTM R 15 n° 1
Acoustic Absorption Class C
Perforation ratio : 16,1%
Board size: 240x120cm
Thickness : 12,5mm
Tapered edges
|
Frequency (Hz)
|
125 |
250 |
500 |
1000 |
2000 |
4000 |
Absorption coefficient |
|
αp (Mineral wool 50mm Plenum depth 30cm) |
0,80 |
0,85 |
0,75 |
0,80 |
0,60 |
0,65 |
αw = 0,70 L (1) |
|
αp (Mineral wool 80mm Plenum depth 10cm) |
0,63 |
1,09 |
0,94 |
0,65 |
0,63 |
0,47 |
αw = 0,60 LM (2) |
(1) Acoustic Test Report : AIRO L/3027/8
(2) Acoustic Test Report : CSTB 713.960.0084/3
- The absorption values, αp, are given per octave band.
- The absorption coefficient, αw, is based on the ISO 11654 standard which uses a rating curve which favours high frequencies. Consequently, the values are followed by an L or an M, to indicate that the PREGYBEL TM boards offer higher absorbency at low frequencies (L) or medium frequencies (M).
- The installations with mineral wool have insulation panels without a vapour barrier.
- Acoustic absorption of a non-perforated PREGYPLAC TM BA13 board:
- αw = 0,10 L (Mineral wool 80 mm plenum depth 60 cm).

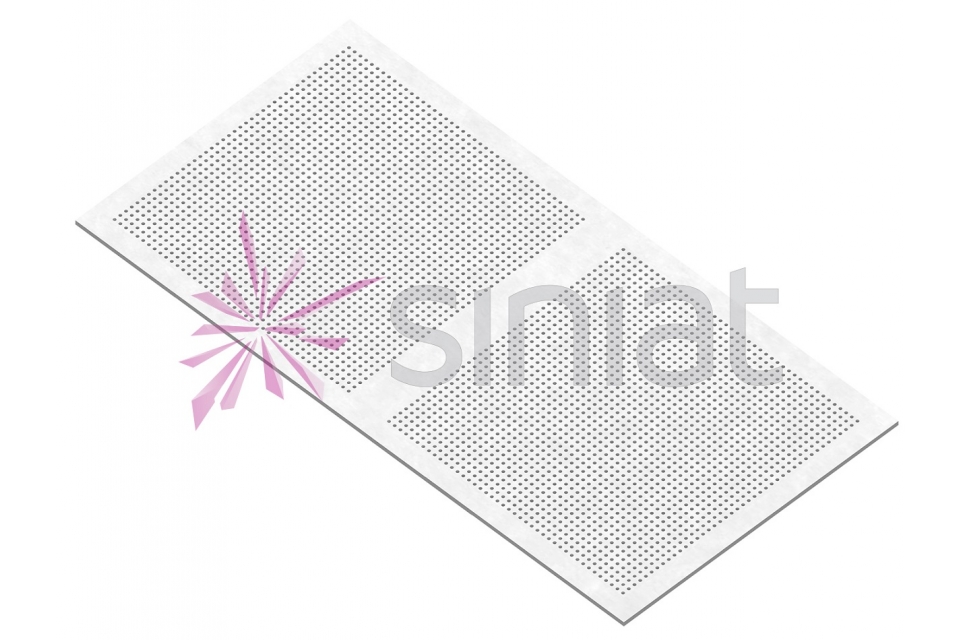

PREGYBELTM R 12 n° 2
Acoustic Absorption Class C
Perforation ratio : 13,9%
Board size: 240x120cm
Thickness : 12,5mm
Tapered edges
|
Frequency (Hz)
|
125 |
250 |
500 |
1000 |
2000 |
4000 |
Absorption coefficient |
|
αp (Mineral wool 50mm Plenum depth 30cm) |
0,85 |
0,80 |
0,65 |
0,70 |
0,70 |
0,65 |
αw = 0,70 L (1) |
|
αp (Without mineral wool Plenum depth 30cm) |
0,80 |
0,80 |
0,65 |
0,60 |
0,60 |
0,55 |
αw = 0,65 L (2) |
|
αp (Mineral wool 80mm Plenum depth 10cm) |
0,69 |
1,04 |
0,87 |
0,62 |
0,51 |
0,48 |
αw = 0,60 LM (3) |
(1) Acoustic Test Report : AIRO L/3027/4
(2) Acoustic Test Report : AIRO L/3027/5
(3) Acoustic Test Report : CSTB 713.960.0084/6
- The absorption values, αp, are given per octave band.
- The absorption coefficient, αw, is based on the ISO 11654 standard which uses a rating curve which favours high frequencies. Consequently, the values are followed by an L or an M, to indicate that the PREGYBEL TM boards offer higher absorbency at low frequencies (L) or medium frequencies (M).
- The installations with mineral wool have insulation panels without a vapour barrier.
- Acoustic absorption of a non-perforated PREGYPLAC TM BA13 board:
- α w = 0,10 L (Mineral wool 80 mm plenum depth 60 cm).
PREGYBELTM C 10 n° 8
Acoustic Absorption Class C
Perforation ratio : 16%
Board size: 240x120cm
Thickness : 12,5mm
Tapered edges
|
Frequency (Hz)
|
125 |
250 |
500 |
1000 |
2000 |
4000 |
Absorption coefficient |
|
αp (Mineral wool 80mm Plenum depth 10cm) |
0,54 |
0,93 |
0,99 |
0,78 |
0,63 |
0,61 |
αw = 0,70 LM (1) |
|
αp (Mineral wool 80mm Plenum depth 30cm) |
0,67 |
0,78 |
0,78 |
0,71 |
0,62 |
0,60 |
αw = 0,70 L (2) |
|
αp (Without mineral wool Plenum depth 30cm) |
0,85 |
0,85 |
0,70 |
0,60 |
0,55 |
0,55 |
αw = 0,60 L (3) |
(1) Acoustic Test Report : CTBA 03/PC/PHY/2142/1-1
(2) Acoustic Test Report : CTBA 03/PC/PHY/2142/1-2
(3) Acoustic Test Report : AIRO L/3027/3
- The absorption values, αp, are given per octave band.
- The absorption coefficient, αw, is based on the ISO 11654 standard which uses a rating curve which favours high frequencies. Consequently, the values are followed by an L or an M, to indicate that the PREGYBEL TM boards offer higher absorbency at low frequencies (L) or medium frequencies (M).
- The installations with mineral wool have insulation panels without a vapour barrier.
- Acoustic absorption of a non-perforated PREGYPLAC TM BA13 board
- αw = 0,10 L (Mineral wool 80 mm plenum depth 60 cm).

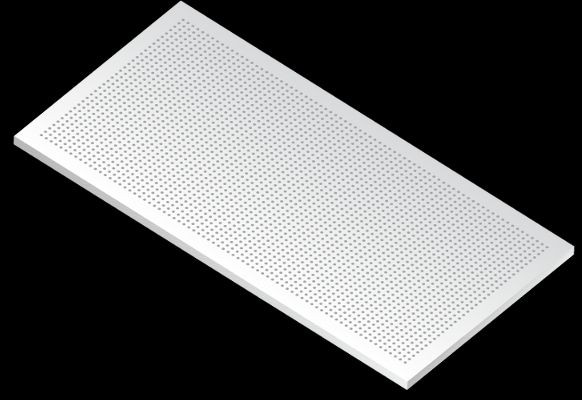

PREGYBELTM C 12 n° 1
Acoustic Absorption Class B
Perforation ratio : 23,1%
Board size: 240x120cm
Thickness : 12,5mm
Square edges
|
Frequency (Hz)
|
125 |
250 |
500 |
1000 |
2000 |
4000 |
Absorption coefficient |
|
αp (Mineral wool 80mm Plenum depth 60cm) |
0,75 |
0,80 |
0,90 |
0,85 |
0,80 |
0,75 |
αw = 0,85(1) |
(1) Acoustic Test Report : CEE / 022 / 12-20
- The absorption values, αp, are given per octave band.
- The absorption coefficient, αw, is based on the ISO 11654 standard which uses a rating curve which favours high frequencies. Consequently, the values are followed by an L or an M, to indicate that the PREGYBEL TM boards offer higher absorbency at low frequencies (L) or medium frequencies (M).
- The installations with mineral wool have insulation panels without a vapour barrier.
- Acoustic absorption of a non-perforated PREGYPLAC TM BA13 board:
- αw = 0,10 L (Mineral wool 80 mm plenum depth 60 cm).

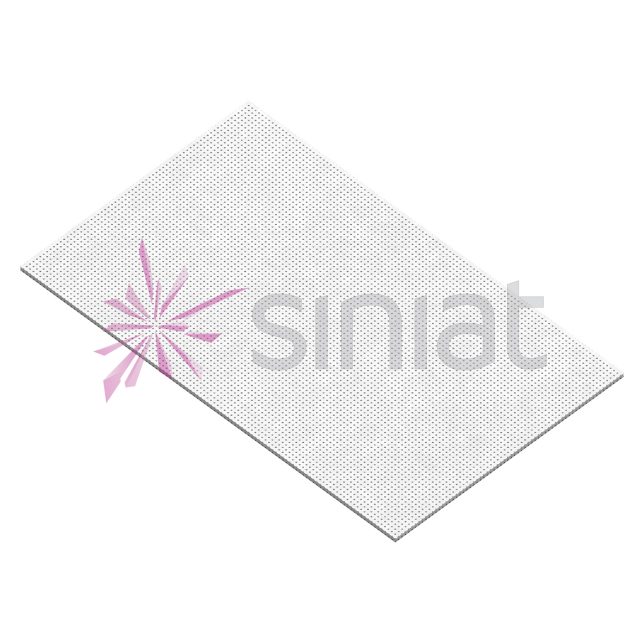

PREGYBELTM R 8 n° 1
Acoustic Absorption Class C
Perforation ratio : 14,3%
Board size: 240x120cm
Thickness : 12,5mm
Square edges
|
Frequency (Hz)
|
125 |
250 |
500 |
1000 |
2000 |
4000 |
Absorption coefficient |
|
αp (Mineral wool 80mm Plenum depth 60cm) |
0,65 |
0,70 |
0,80 |
0,70 |
0,60 |
0,65 |
αw = 0,70 (1) |
(1) Acoustic Test Report : CEE / 022 / 12-19
- The absorption values, αp, are given per octave band.
- The absorption coefficient, αw, is based on the ISO 11654 standard which uses a rating curve which favours high frequencies. Consequently, the values are followed by an L or an M, to indicate that the PREGYBEL TM boards offer higher absorbency at low frequencies (L) or medium frequencies (M).The installations with mineral wool have insulation panels without a vapour barrier.
- Acoustic absorption of a non-perforated PREGYPLAC TM BA13 board:
- αw = 0,10 L (Mineral wool 80 mm plenum depth 60 cm).
PREGYBELTM R 12 n° 1
Acoustic Absorption Class C
Perforation ratio : 18,2%
Board size: 240x120cm
Thickness : 12,5mm
Square edges
|
Frequency (Hz)
|
125 |
250 |
500 |
1000 |
2000 |
4000 |
Absorption coefficient |
|
αp (Mineral wool 80mm Plenum depth 60cm) |
0,50 |
0,60 |
0,75 |
0,75 |
0,70 |
0,65 |
αw = 0,75 (1) |
(1) Acoustic Test Report : CTA 140004 / REV-2
- The absorption values, αp, are given per octave band.
- The absorption coefficient, αw, is based on the ISO 11654 standard which uses a rating curve which favours high frequencies. Consequently, the values are followed by an L or an M, to indicate that the PREGYBEL TM boards offer higher absorbency at low frequencies (L) or medium frequencies (M).
- The installations with mineral wool have insulation panels without a vapour barrier.
- Acoustic absorption of a non-perforated PREGYPLAC TM BA13 board:
- αw = 0,10 L (Mineral wool 80 mm plenum depth 60 cm).
PREGYBELTM L 5 x 80 n° 8
Acoustic Absorption Class D
Perforation ratio : 10,7%
Board size: 240x120cm
Thickness : 12,5mm
Tapered edges
|
Frequency (Hz)
|
125 |
250 |
500 |
1000 |
2000 |
4000 |
Absorption coefficient |
|
αp (Mineral wool 80mm Plenum depth 30cm) |
0,56 |
0,95 |
0,94 |
0,65 |
0,48 |
0,41 |
αw = 0,55 LM (1) |
|
αp (Mineral wool 80mm Plenum depth 10cm) |
0,68 |
0,75 |
0,73 |
0,60 |
0,49 |
0,44 |
αw = 0,55 L (2) |
(1) Acoustic Test Report : CTBA 03/PC/PHY/2143/2-1
(2) Acoustic Test Report : CTBA 03/PC/PHY/2143/2-2
- The absorption values, αp, are given per octave band.
- The absorption coefficient, αw, is based on the ISO 11654 standard which uses a rating curve which favours high frequencies. Consequently, the values are followed by an L or an M, to indicate that the PREGYBEL TM boards offer higher absorbency at low frequencies (L) or medium frequencies (M).
- The installations with mineral wool have insulation panels without a vapour barrier.
- Acoustic absorption of a non-perforated PREGYPLAC TM BA13 board:
- αw = 0,10 L (Mineral wool 80 mm plenum depth 60 cm).

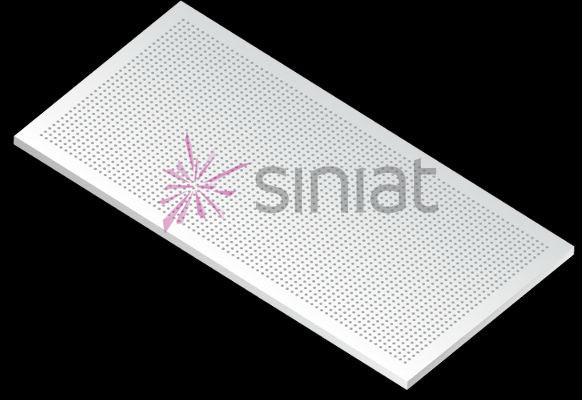

PREGYBELTM C 8 n° 1
Acoustic Absorption Class C
Perforation ratio : 18,3%
Board size: 240x120cm
Thickness : 12,5mm
Square edges
|
Frequency (Hz)
|
125 |
250 |
500 |
1000 |
2000 |
4000 |
Absorption coefficient |
|
αp (Mineral wool 80mm Plenum depth 60cm) |
0,70 |
0,75 |
0,85 |
0,80 |
0,70 |
0,60 |
αw = 0,75 (1) |
(1) Acoustic Test Report : CEE / 022 / 12-18
- The absorption values, αp, are given per octave band.
- The absorption coefficient, αw, is based on the ISO 11654 standard which uses a rating curve which favours high frequencies. Consequently, the values are followed by an L or an M, to indicate that the PREGYBEL TM boards offer higher absorbency at low frequencies (L) or medium frequencies (M).
- The installations with mineral wool have insulation panels without a vapour barrier.
- Acoustic absorption of a non-perforated PREGYPLAC TM BA13 board:
- αw = 0,10 L (Mineral wool 80 mm plenum depth 60 cm).
PREGYBELTM A 12-20-35 n° 1
Acoustic Absorption Class D
Perforation ratio : 9,8%
Board size: 240x120cm
Thickness : 12,5mm
Square edges
|
Frequency (Hz)
|
125 |
250 |
500 |
1000 |
2000 |
4000 |
Absorption coefficient |
|
αp (Mineral wool 80mm Plenum depth 60cm) |
0,55 |
0,65 |
0,65 |
0,55 |
0,40 |
0,40 |
αw = 0,50 L (1) |
(1) Acoustic Test Report : CEE / 022 / 12-17-R1
- The absorption values, αp, are given per octave band.
- The absorption coefficient, αw, is based on the ISO 11654 standard which uses a rating curve which favours high frequencies. Consequently, the values are followed by an L or an M, to indicate that the PREGYBEL TM boards offer higher absorbency at low frequencies (L) or medium frequencies (M).
- The installations with mineral wool have insulation panels without a vapour barrier.
- Acoustic absorption of a non-perforated PREGYPLAC TM BA13 board:
- αw = 0,10 L (Mineral wool 80 mm plenum depth 60 cm).

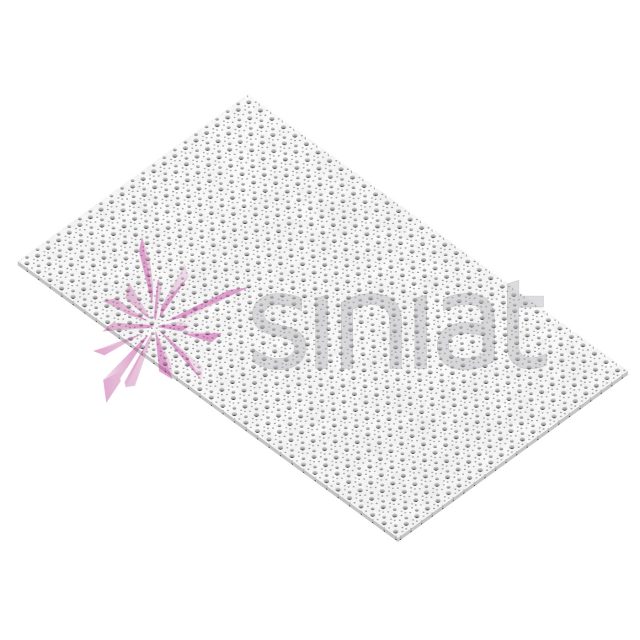

PREGYBELTM A 8-15-20 n° 1
Acoustic Absorption Class D
Perforation ratio : 10,2%
Board size: 240x120cm
Thickness : 12,5mm
Square edges
|
Frequency (Hz)
|
125 |
250 |
500 |
1000 |
2000 |
4000 |
Absorption coefficient |
|
α p (Mineral wool 80mm Plenum depth 60cm) |
0,60 |
0,60 |
0,70 |
0,65 |
0,45 |
0,45 |
α w = 0,55 L (1) |
1) Acoustic Test Report : CEE / 022 / 12-16-R1
- The absorption values, αp, are given per octave band.
- The absorption coefficient, αw, is based on the ISO 11654 standard which uses a rating curve which favours high frequencies. Consequently, the values are followed by an L or an M, to indicate that the PREGYBEL TM boards offer higher absorbency at low frequencies (L) or medium frequencies (M).
- The installations with mineral wool have insulation panels without a vapour barrier.
- Acoustic absorption of a non-perforated PREGYPLAC TM BA13 board:
- αw = 0,10 L (Mineral wool 80 mm plenum depth 60 cm).
